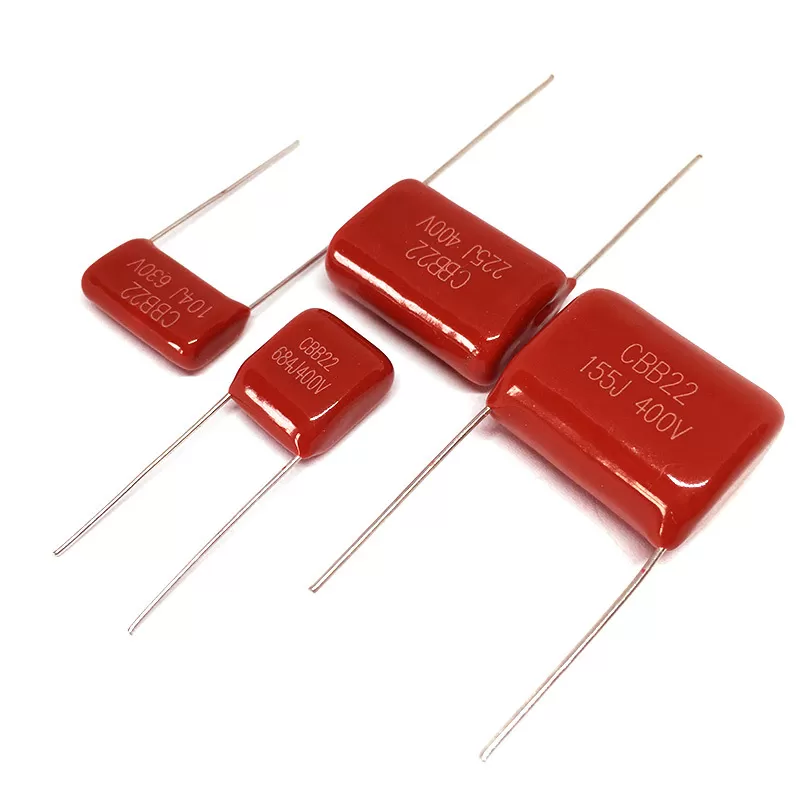

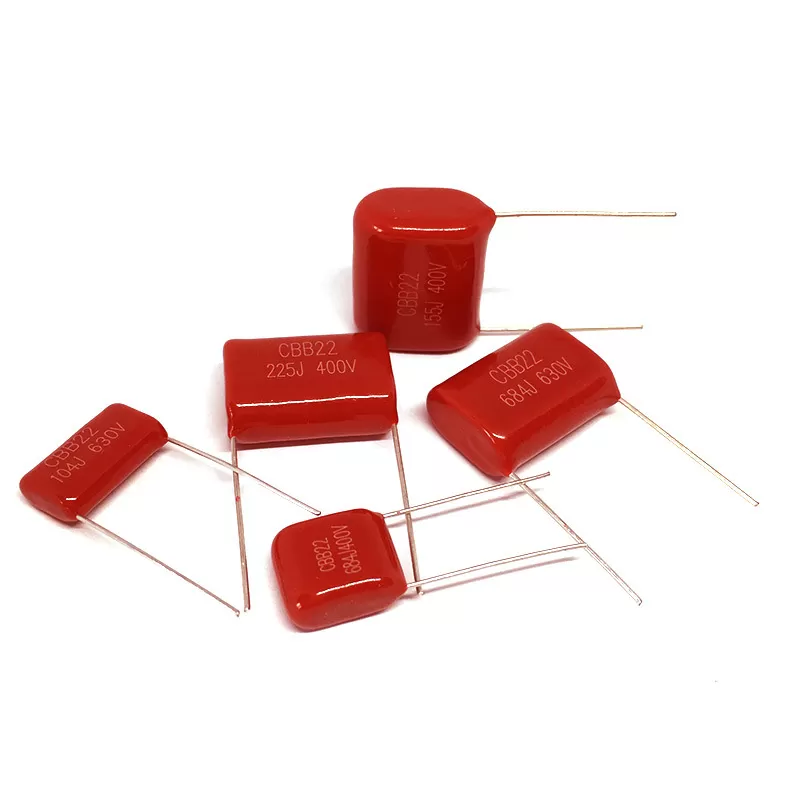

CBB22 METALLIZED FILM CAPACITOR
This product record identifies a CBB22 115J, 1.1µF, 400V radial film capacitor. Final selection should confirm circuit stress, temperature, lead pitch, body dimensions and qualification requirements against the ordered code and approved sample.
INTRODUCTION
| Parameter | Reference Value |
|---|---|
| Capacitance | 1.1µF |
| Rated voltage | 400V |
| Temperature | Series-dependent; confirm for the ordered code |
| Dimensions | P20 mm or P25 mm lead-pitch options shown in the current record; confirm the drawing |
| Service life | Series- and duty-dependent; confirm for the operating profile |
| Application fields | DC filtering, coupling, suppression and power-electronics circuits after engineering review |
| Customization support | Yes |
| Customization range | Capacitance, voltage, lead pitch, enclosure, marking, packing and brand customization subject to approved sample |
Product Information
PRODUCT INTRODUCTION
The listed 1.1µF and 400V values define the starting point. For production release, match the waveform, continuous and transient voltage, ambient temperature, lead pitch, body envelope and documentation to the selected series.
Clear 1.1µF / 400V identity for sourcing discussions.
Radial through-hole format for PCB assembly and replacement reviews.
Multiple lead-pitch options recorded, with final dimensions controlled by drawing.
Custom marking, packing and brand programs can be reviewed against order requirements.
Typical review areas include filtering, coupling, suppression and general power-electronics functions where a radial film capacitor is suitable.
For pulse, high-ripple, safety-class or mains-connected duty, provide the circuit position and qualification requirement before selection.
Confirm capacitance, tolerance and voltage definition.
Provide waveform, frequency, RMS current and transient conditions.
Confirm ambient, enclosure, cooling and service-life target.
Lock body size, lead pitch, lead diameter and PCB clearance by drawing.
Approve marking, packing, qualification documents and production sample.
Not automatically. Confirm the selected body size, lead pitch and PCB drawing before approval.
Do not infer a safety class from the headline rating. State the circuit position and required standard so the correct series can be reviewed.
Send the electrical duty, dimensions, quantity, marking, packing and documentation requirements.
The selected-series data, approved drawing, quotation and approved sample govern the order.
Share the circuit duty, mechanical envelope, annual demand and approval requirements for a product-specific review.
