COMPACT HIGH-PULSE MKP
A compact radial polypropylene family for pulse-rich switching circuits where dV/dt, peak current, low loss and package size must be considered together.
INTRODUCTION
01 · TECHNICAL REFERENCE
Values below define the product family. Exact electrical and mechanical limits follow the selected ordering code and approved drawing.

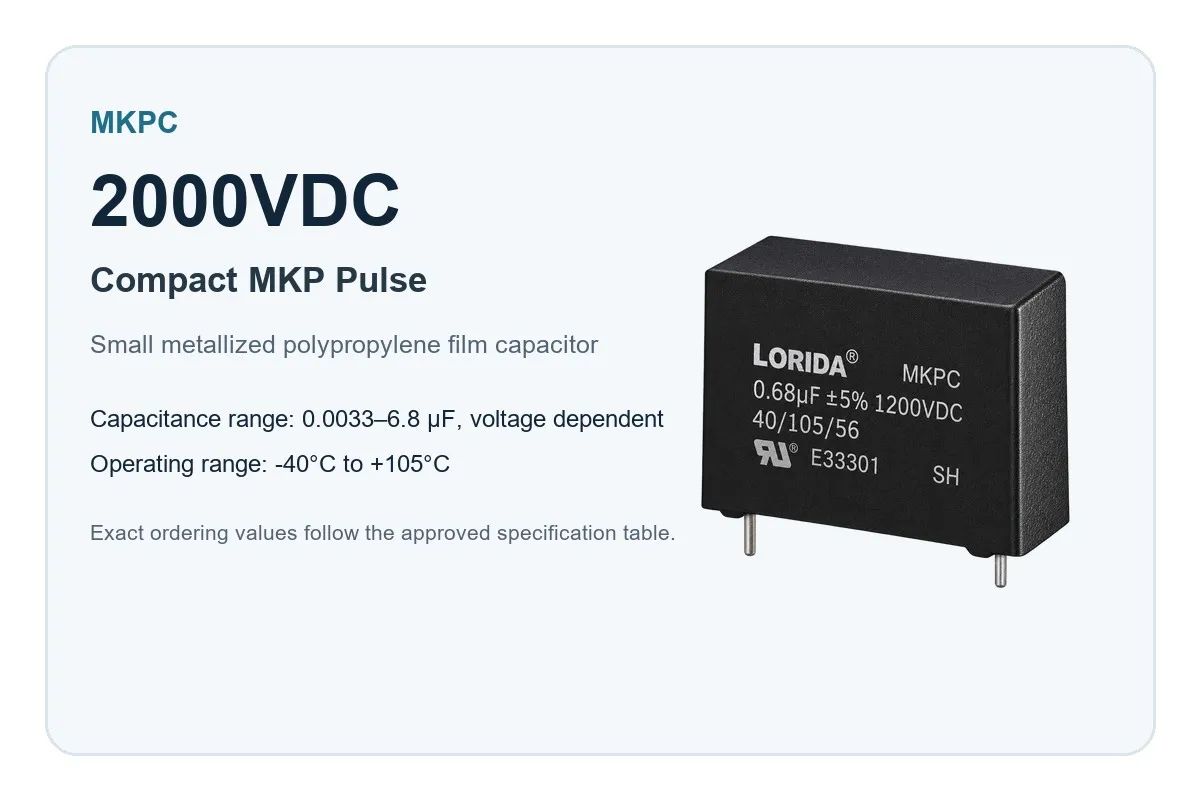

| Parameter | Reference Value |
|---|---|
| Capacitance | 0.0033–6.8 µF, voltage dependent |
| Rated voltage | 2000VDC |
| Operating temperature | -40°C to +105°C |
| Dimensions | Ordering-code specific; confirm W×H×T and approved drawing |
| Expected life / endurance | 1,000 h endurance at 1.25× rated voltage |
| Application field | electronic ballasts, snubbers, switch-mode power supplies and high-pulse circuits |
| Customization supported | Yes, subject to technical and commercial review |
| Customization scope | Capacitance, case, lead configuration, sleeve/printing and approved LORIDA branding |
Product Information
02 · PRODUCT ENGINEERING GUIDE
undefined
High-pulse metallized polypropylene construction
Low dielectric loss for switching circuits
Compact radial box format
Voltage-specific dV/dt, peak-current and case selection

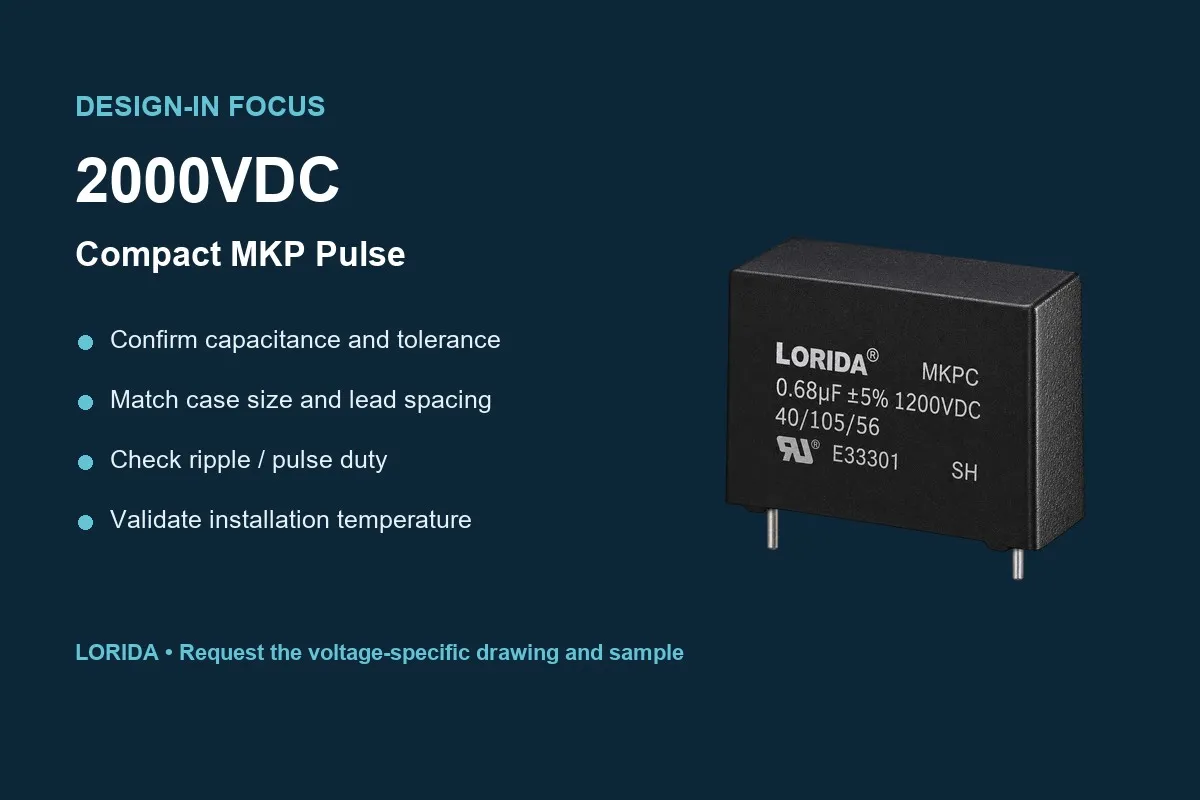

Define voltage, capacitance and circuit duty.
Share waveform/current, frequency and ambient conditions.
Confirm case size, lead configuration and PCB limits.
Approve ordering code, drawing and sample before production.
03 · APPLICATION FIT
| Application | Design focus |
|---|---|
| Snubber and resonant circuits | snubber and pulse-current service |
| Electronic ballasts and lighting power stages | Compact OEM design-in |
| Switch-mode power supplies | Voltage-family selection |
| High-pulse industrial electronics | Drawing and sample approval |
04 · BUYER QUESTIONS
No. Pulse amplitude, dV/dt, repetition rate, peak current and temperature must also be checked.
No. It is a representative package; dimensions follow the capacitance and ordering code.
Selection depends on the circuit duty. Use the dedicated DC-link family when continuous DC-bus ripple service is the primary requirement.
Provide capacitance, waveform, frequency, voltage, peak current, ambient temperature, PCB pitch and annual quantity.
Please provide capacitance, voltage, current or pulse duty, frequency, ambient temperature, case limit, PCB pitch, approval market, annual quantity and branding requirement.

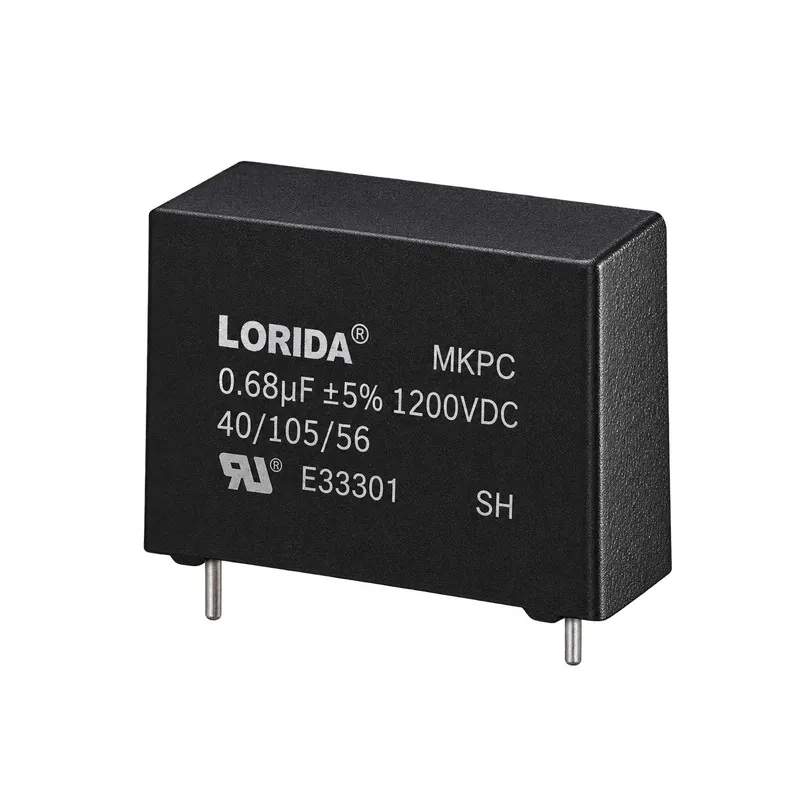

The product image is representative. Final marking, dimensions, electrical ratings and applicable documentation follow the approved part number, drawing and sample.
Send your target capacitance and application conditions. LORIDA will review the suitable case, lead configuration and ordering code.
