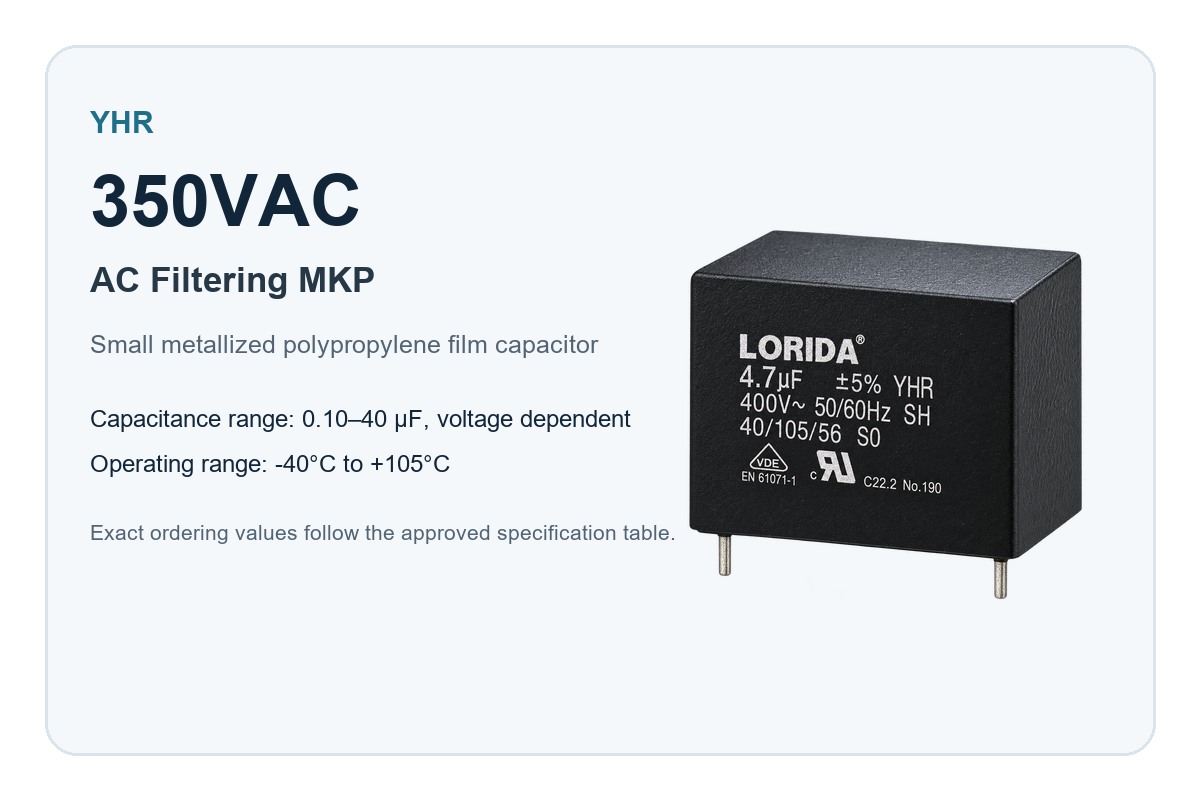

AC FILTERING PLATFORM
Built for converter output and mains-frequency filter networks that need low-loss polypropylene construction, self-healing behaviour and voltage-specific RMS-current capability.
INTRODUCTION
01 · TECHNICAL REFERENCE
Values below define the product family. Exact electrical and mechanical limits follow the selected ordering code and approved drawing.
| Parameter | Reference Value |
|---|---|
| Capacitance | 0.10–40 µF, voltage dependent |
| Rated voltage | 350VAC |
| Operating temperature | -40°C to +105°C |
| Dimensions | Ordering-code specific; confirm W×H×T and approved drawing |
| Expected life / endurance | 60,000 h at rated voltage and 85°C |
| Application field | AC output filters, UPS systems, motor drives and power converters |
| Customization supported | Yes, subject to technical and commercial review |
| Customization scope | Capacitance, case, lead configuration, sleeve/printing and approved LORIDA branding |
Product Information
02 · PRODUCT ENGINEERING GUIDE
undefined
Low dielectric loss for switching and sinusoidal filter networks
Self-healing metallization for stable long-term operation
2-pin and 4-pin package options within the voltage family
Voltage-specific ESR, Irms and case selection

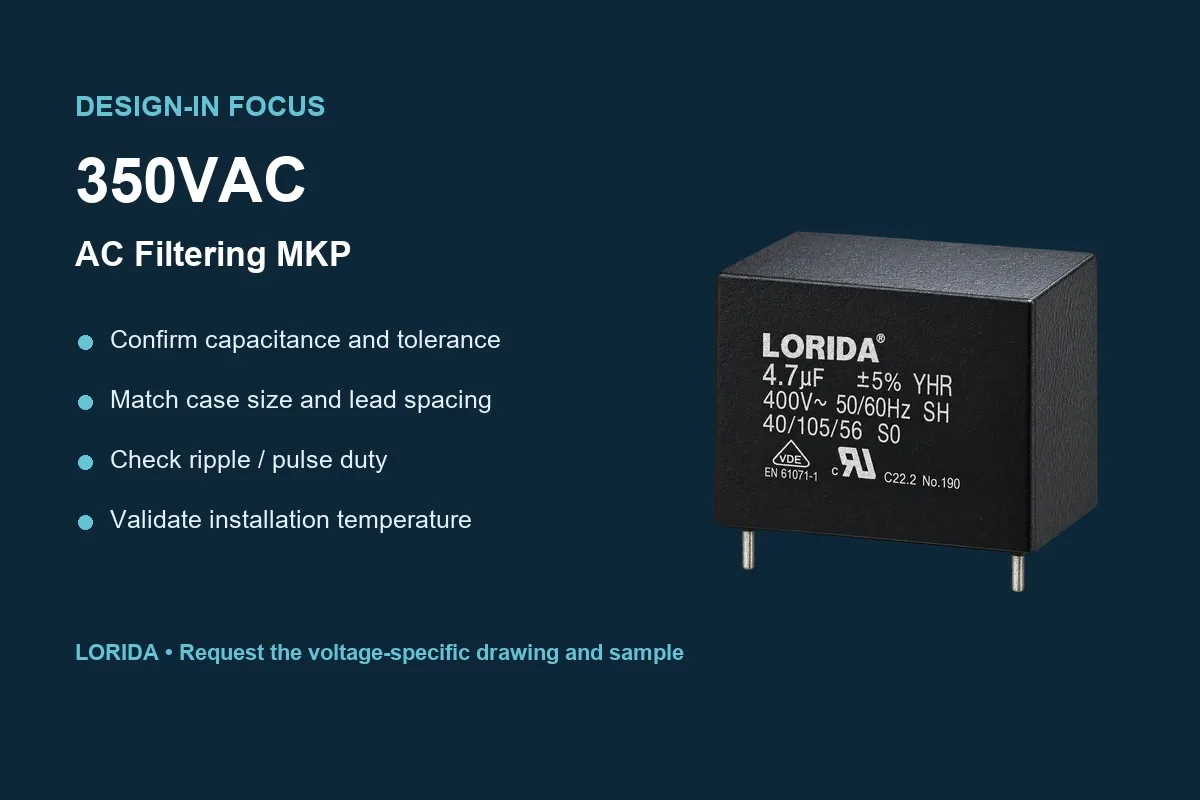

Define voltage, capacitance and circuit duty.
Share waveform/current, frequency and ambient conditions.
Confirm case size, lead configuration and PCB limits.
Approve ordering code, drawing and sample before production.
03 · APPLICATION FIT
| Application | Design focus |
|---|---|
| Converter output filters | continuous AC-current filter service |
| UPS and industrial backup systems | Compact OEM design-in |
| Motor-drive and servo output stages | Voltage-family selection |
| Industrial power-conversion equipment | Drawing and sample approval |
04 · BUYER QUESTIONS
No. Each page represents one rated-voltage family and covers the capacitance and package variants available in that section.
Share RMS current, frequency, ambient temperature and cooling conditions for ordering-code review.
No. Terminal layout follows the selected case and ordering code and must match the PCB drawing.
Yes. A controlled drawing and sample can be prepared after the electrical and mechanical requirements are locked.
Please provide capacitance, voltage, current or pulse duty, frequency, ambient temperature, case limit, PCB pitch, approval market, annual quantity and branding requirement.

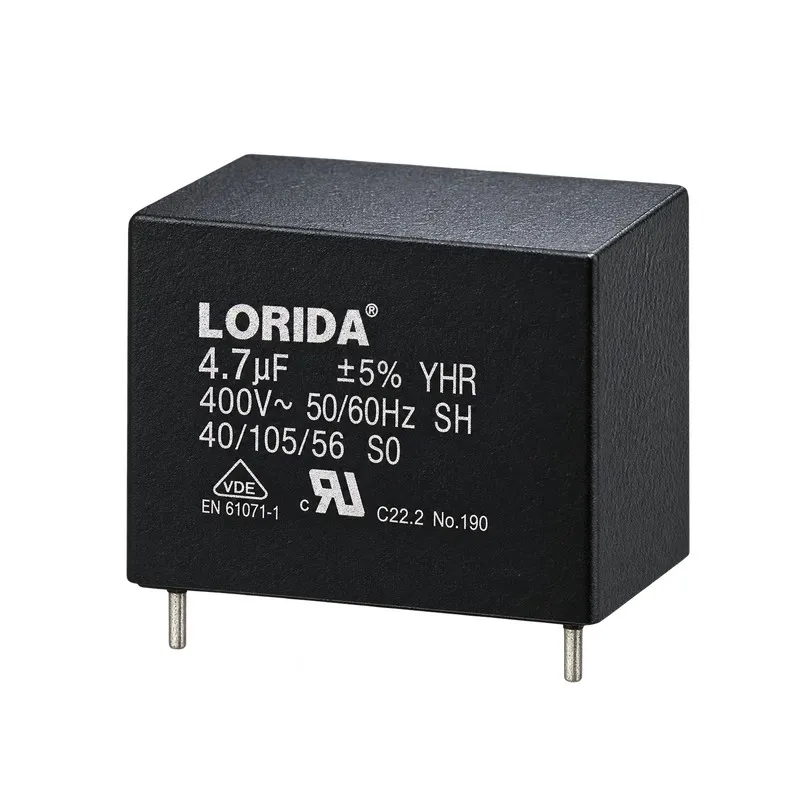

The product image is representative. Final marking, dimensions, electrical ratings and applicable documentation follow the approved part number, drawing and sample.
Send your target capacitance and application conditions. LORIDA will review the suitable case, lead configuration and ordering code.
