Electrolytic capacitors are indispensable passive components in electronic circuits and are widely used in power management, audio equipment, industrial control and other fields. This article will explore the types, production processes, key parameters and practical applications of electrolytic capacitors, and analyze the selection points and common problem solutions in combination with specific models
1. Aluminum electrolytic capacitors and polymer aluminum electrolytic capacitors
Aluminum electrolytic capacitors are the most common types, such as 4700uf 63v electrolytic capacitors and 2200μf 450v electrolytic capacitors, which are suitable for large-capacity energy storage and filtering. Polymer aluminum electrolytic capacitors have lower ESR and longer life, and are suitable for high-frequency switching power supplies. Electrolytic Capacitor Production Machine includes: Winding machine (for winding aluminum foil and electrolytic paper), impregnation equipment (for injecting electrolyte), aging test equipment (to ensure capacitor stability)

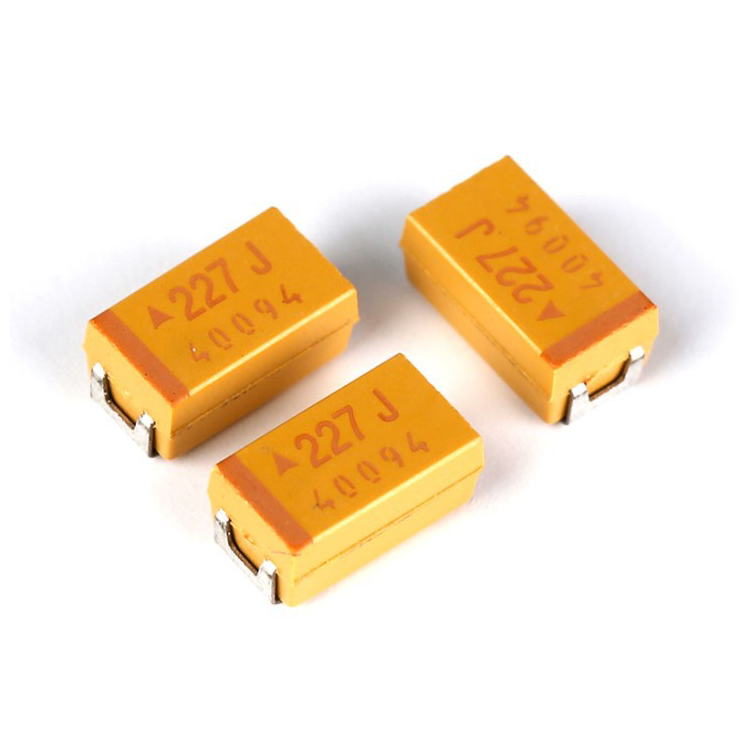

Tantalum Electrolytic Capacitor, Tantalum capacitors are small in size and high in stability, suitable for high-precision circuits such as medical equipment and aerospace electronics. But its withstand voltage is low, usually not exceeding 50V.
SMD Electrolytic Capacitor, 100uf 50v SMD Electrolytic Capacitor (SMD Electrolytic Capacitor 100uf 50v) is used for motherboards and consumer electronics. 220uf 16v SMD Electrolytic Capacitor (Capacitor Electrolytic SMD 220uf 16v) is commonly used in laptop power management.
2. Key Parameters and Selection Guide
Large Capacitor (20000uf Electrolytic Capacitor) is used for industrial motor drives and energy storage systems. High voltage electrolytic capacitors (450V Electrolytic Capacitor) such as 450v 2700uf electrolytic capacitor (450v 2700uf electrolytic capacitor) are suitable for switching power supplies and inverters. Medium voltage electrolytic capacitors (200v 2700uf Electrolytic Capacitor) are used for audio amplifiers and LED drivers
105°C high temperature electrolytic capacitors (39uf 400v. 105°c Electrolytic Capacitor) are suitable for automotive electronics and industrial environments. Long life electrolytic capacitors (such as Lorida Electrolytic Capacitors) can work for more than 10,000 hours.
Screw terminal electrolytic capacitors (200v Screw Terminal Electrolytic Capacitor) are used for high current applications. Axial electrolytic capacitors (Electrolyt Capacitor Capacit) are suitable for repairing old electronic equipment.
3. Practical application case analysis
400v 1500uf Electrolytic Capacitor is used in inverters and servo drives to provide stable filtering. 4700uf 250v Electrolytic Capacitor is used as an energy buffer element in welding machines.
Audio High Voltage Aluminum Electrolytic Capacitor AC 2200uf 10volt is used in Hi-Fi amplifiers to reduce power supply noise. 8200uf 80v Electrolytic Capacitor provides instantaneous high current in professional audio systems.
5v Electrolytic Capacitor is used for USB device power filtering. 10µf Electrolytic Capacitor is used in signal coupling circuits.
4. Common faults and solutions
High temperature or overvoltage causes 450v 560uf electrolytic capacitors to fail. They must be replaced with 105°C high temperature models or polymer capacitors.
4700uf electrolytic capacitors have an increased ESR after aging, causing the switching power supply to overheat. It is recommended to use low ESR capacitors or connect multiple capacitors in parallel.
315WV 680uf aluminum electrolytic capacitors have a decreased capacity after long-term use. Regularly check or use electrolytic capacitor test kits for maintenance.
5. High-end applications and future trends

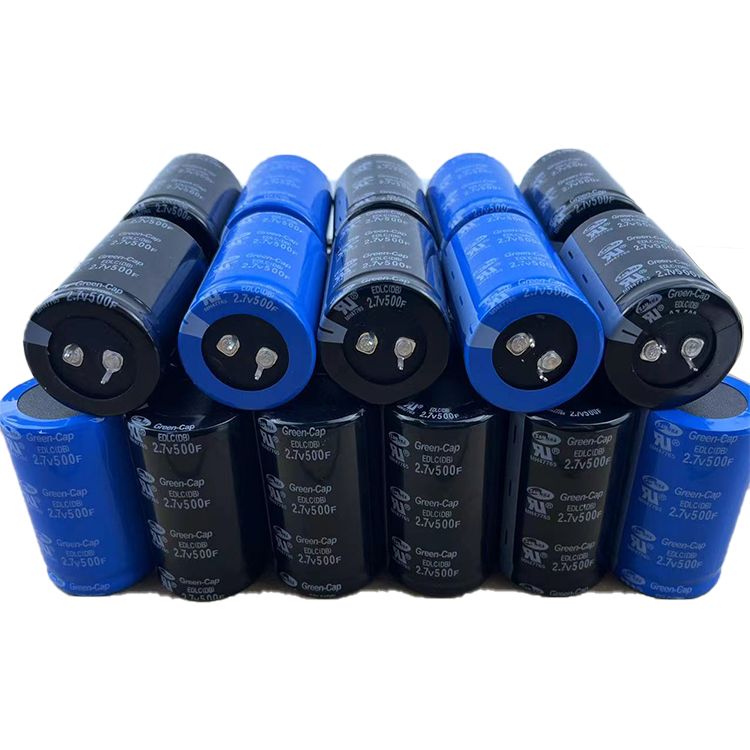

Super electrolytic capacitors are used in energy storage systems to provide instantaneous large currents.
MLCC and Electrolytic Capacitors optimize high-frequency filtering in 5G devices.
Lorida Electrolytic Capacitors excel in low-cost applications.
The selection of electrolytic capacitors requires comprehensive consideration of capacity, voltage, temperature, ESR and life. For industrial applications and consumer electronics, cost-effective models such as Lorida brands can be selected. In the future, polymer capacitors and supercapacitors will play a greater role in new energy and high-end electronics. Through reasonable selection and maintenance, electrolytic capacitors can significantly improve the stability and life of electronic equipment.
