Electrolytic capacitors are essential components in electronic circuits and are widely used in power supply filtering, audio equipment, and industrial control systems. This article will explore the types, characteristics, selection points, and common troubleshooting solutions of electrolytic capacitors to help engineers and technicians make wise choices.

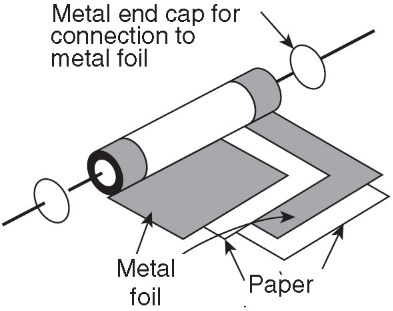

Electrolytic capacitor is a polar capacitor known for its high capacity-to-volume ratio. It is mainly divided into two categories: aluminum electrolytic capacitors and tantalum electrolytic capacitors. Aluminum electrolytic capacitors dominate the market due to their cost-effectiveness and high capacity value.
Common electrolytic capacitors include CD110 electrolytic capacitor, CD268 series (CD268 electrolytic capacitor) and CD136 aluminum electrolytic capacitor (Aluminum electrolytic capacitor CD136). These models have their own characteristics in withstand voltage, capacity and temperature characteristics, suitable for different application scenarios.
In terms of packaging form, electrolytic capacitors can be divided into radial type (Radial electrolytic capacitor), axial type (Axial electrolytic capacitor) and surface mount type (SMD electrolytic capacitor). Among them, 760uf 400v electrolytic capacitor radial (760uf 400v electrolytic capacitor radial) is common in high-power power supply equipment, while SMD type is widely used in compact electronic devices.
The performance of electrolytic capacitors is mainly determined by several key parameters:

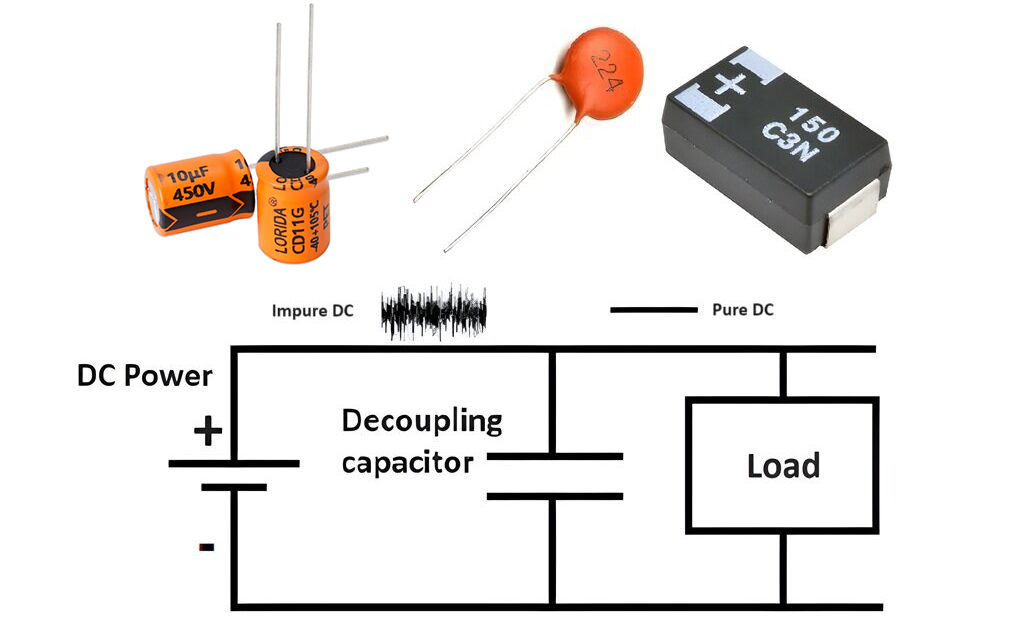

Capacitance: From small 22uf electrolytic capacitors to very large 47000uf 16v electrolytic capacitors. For example, 10uf 50v electrolytic capacitors are often used in signal coupling circuits, while 15000uf 100v electrolytic capacitors are mostly used for power supply filtering.
Rated voltage: From low voltage 16V to high voltage 550V. 200v electrolytic capacitors and 450v electrolytic capacitors are commonly used in the primary side of switching power supplies, while industrial-grade electrolytic capacitors rubycon nichicon 400v 2200µf are used in industrial inverters.
Temperature rating and life expectancy: High quality electrolytic capacitors such as JWCO brand (JWco electrolytic capacitor) generally have longer service life and better temperature stability.
When selecting, engineers need to consider the actual operating voltage to leave a margin (usually 70-80% of the rated voltage), and pay attention to the ESR (equivalent series resistance) value, especially in high-frequency applications.
Audio Equipment Application
In high-end audio equipment, 15000uf 80v electrolytic capacitors are often used as power supply filters for power amplifier stages. Hexun brand 4700uf capacitors are also popular with audio designers for their low ESR characteristics. Actual cases show that class A amplifiers using 10000uf 80v electrolytic capacitors have lower power supply noise than traditional designs.
Industrial Power Solutions
In industrial environments, 8200uf-63v electrolytic capacitors are often used in PLC control systems. TDK/EPCOS B41550 series are widely used in inverter designs for their excellent reliability. It is particularly noteworthy that 4700uf 450v aluminum electrolytic capacitors (Aluminum electrolytic capacitors 4700uf 450v) play a key energy buffering role in welding machines.

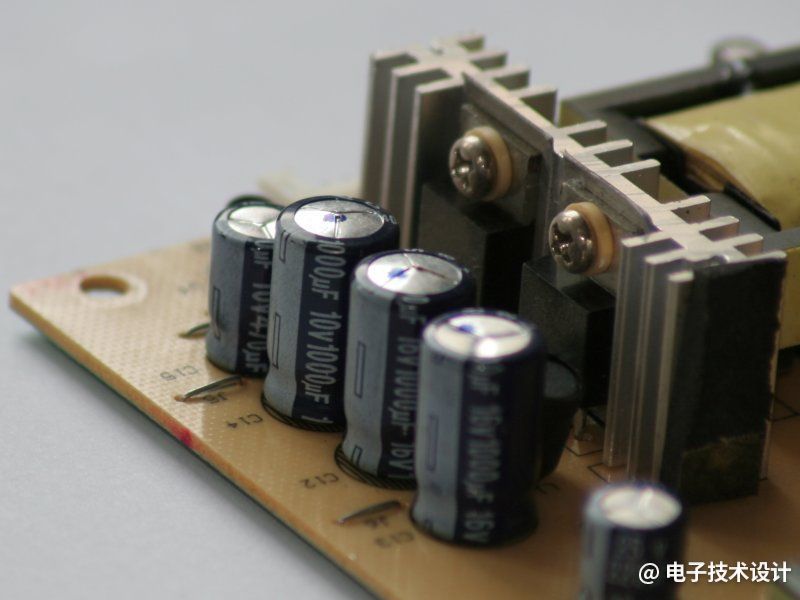

Motherboard and consumer electronics

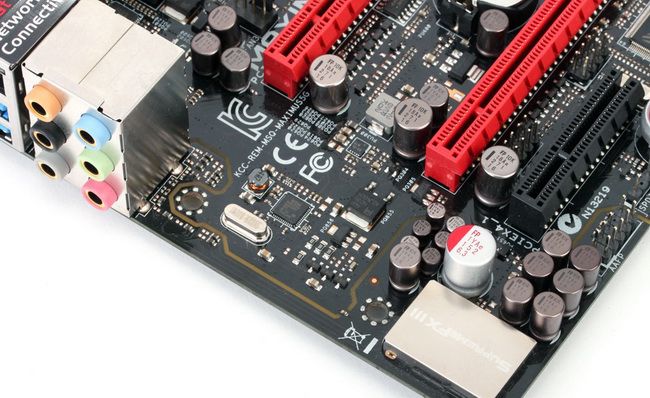

The choice of motherboard electrolytic capacitors (Motherboard electrolytic capacitor) directly affects the stability of the computer. In recent years, solid electrolytic capacitors have gradually replaced traditional liquid capacitors, but 120uf 200v electrolytic capacitors (Electrolytic capacitors 120uf 200v) are still widely used in ATX power supplies. Actual maintenance cases show that when replacing inferior motherboard capacitors, the use of electrolytic capacitor kits (Electrolytic capacitor kit 50v) can improve maintenance efficiency.
Failure of electrolytic capacitors is one of the common causes of electronic equipment failures, mainly manifested as capacity attenuation, increased ESR or complete short circuit. The following are typical failure modes and treatment suggestions:

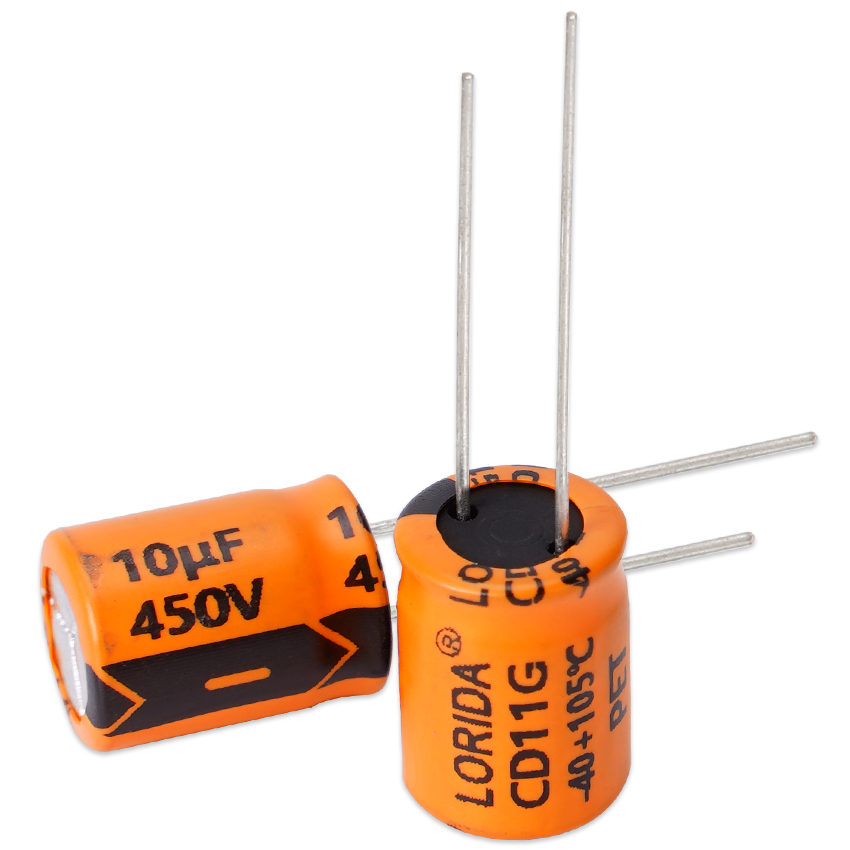

Bulging and leakage: Common in high temperature environments or overvoltage use. For example, a certain brand of monitor frequently experienced bulging failures of 110uf electrolytic capacitors, which were solved after replacing them with Lorida 110uf electrolytic capacitor 105℃ grade capacitors.

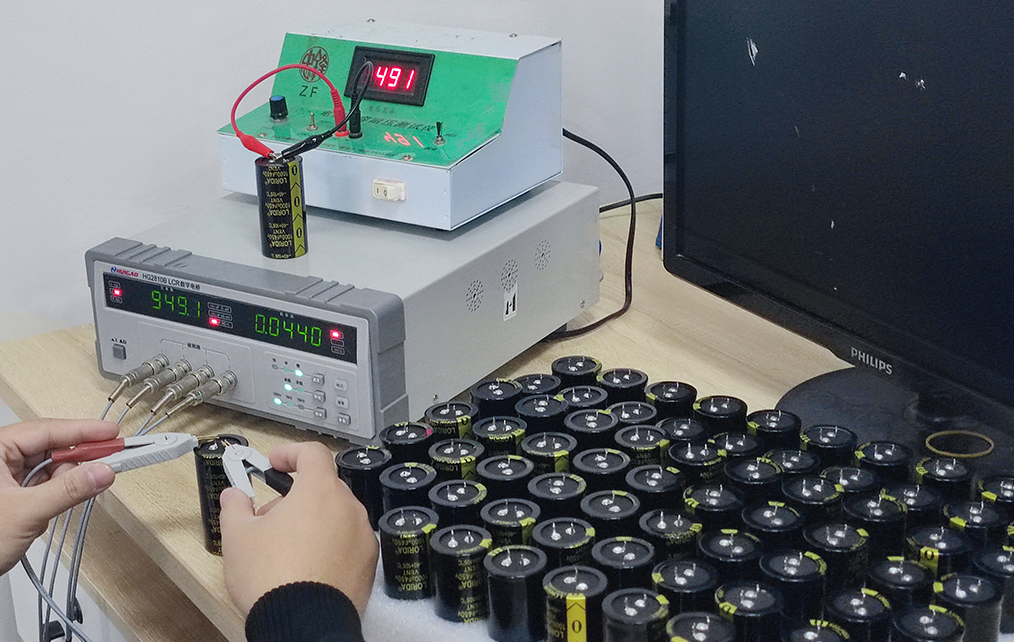

Insufficient capacity: After long-term use, the capacity of 350v 1500uf electrolytic capacitors may drop to less than 1000uf, resulting in increased power supply ripple. Regular testing or using an electrolytic capacitor test box can detect problems in advance.
High ESR failure: The increased ESR of 4700 microfarad electrolytic capacitors can cause overheating of the switching power supply. The solution is to choose a low ESR model or connect multiple capacitors in parallel.
For large screw terminal electrolytic capacitors, such as 35000uf electrolytic capacitors, proper torque must be ensured during installation to avoid internal damage caused by mechanical stress.
In special application areas, electrolytic capacitors play an irreplaceable role:
550v high-voltage electrolytic capacitors (550v electrolytic capacitor) and 100uf 550v models (550v 100uf electrolytic capacitors) are used in medical equipment such as X-ray machines
Bakelite cover for aluminum electrolytic capacitors are used in rail transit due to their excellent fire resistance
35v 15000uf electrolytic capacitors (35v 15000uf electrolytic capacitors) provide instantaneous large current in servo drives

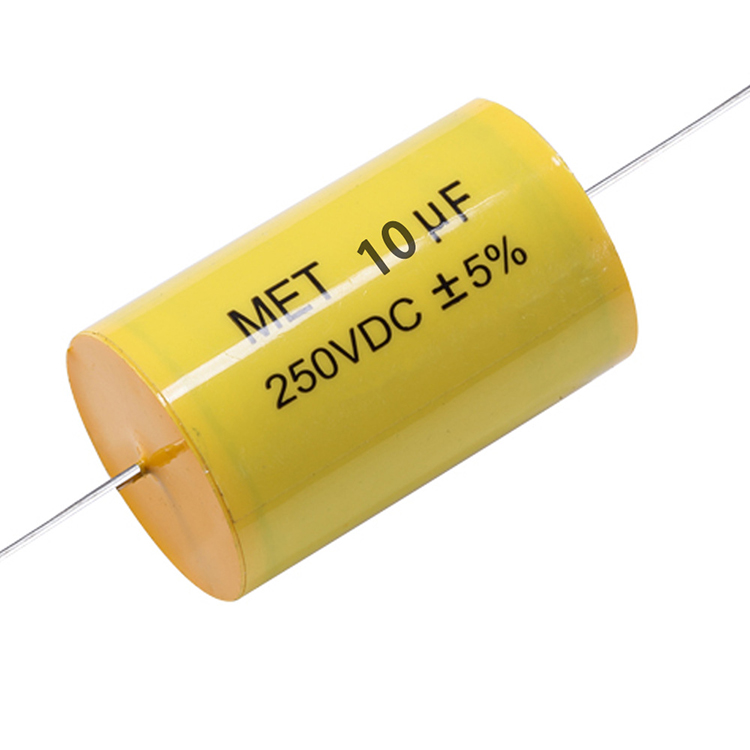

Axial lead electrolytic capacitors (Capacitor electrolytic axual) are still in demand in the maintenance of old equipment
Electrolytic capacitor technology continues to develop, and new materials and structures continue to emerge. When choosing, engineers should comprehensively consider capacity, voltage, temperature characteristics, life and cost factors, and make the best choice based on equipment specifications and actual working environment. Through correct selection and use, electrolytic capacitors can provide stable and reliable performance guarantees for electronic equipment.
