1. Voltage and Capacity Matching Practical Cases

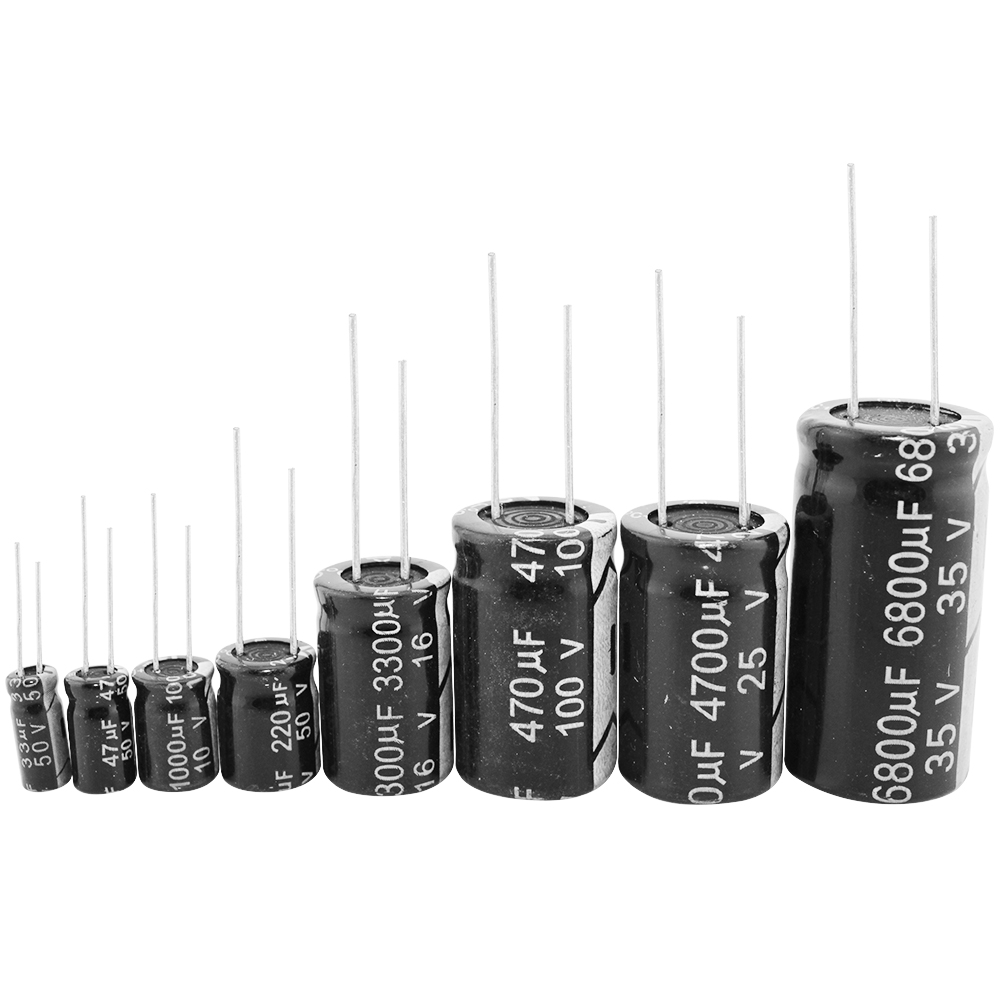

A branded motherboard uses 16V 3300μF electrolytic capacitors for CPU power supply filtering, with measured operating voltage of 12V, providing sufficient margin. Industrial frequency converters utilize 200V 3300μF electrolytic capacitors, with actual operating voltage of 180V, complying with derating specifications. Electric vehicle controllers employ 25V 3300μF electrolytic capacitors, with maximum operating environment temperature of 85°C, requiring 105°C rated specifications.
2. Home Appliance Typical Cases
A branded fan using CBB61 aluminum electrolytic capacitors exhibited unstable speed; replacement resolved the issue. In television power boards, bulging 16V 47μF electrolytic capacitors caused standby circuit abnormalities; replacement with same specifications solved the problem. Microwave control board 25V electrolytic capacitor failure caused program; using industrial-grade products for replacement fixed the fault.
3. Industrial Scenario Fault Handling
A frequency converter's 500V 10000μF electrolytic capacitor exploded; investigation revealed cooling fan failure caused overheating. Welding equipment's 450V 3300μF electrolytic capacitor capacity resulted in unstable output current; replacement restored normal operation. Servo drive's 12000μF 400V electrolytic capacitor ESR increase caused motor vibration; using low-ESR models solved the issue.
4. New Energy Application Examples
Photovoltaic inverters using 680μF 450V electrolytic capacitors showed reduced lifespan in high-temperature environments; switching to 105°C long-life models solved this. Wind power converter 10000μF 300V electrolytic capacitors experienced capacity reduction in low-temperature conditions; adding heating devices addressed the problem. Electric vehicle charging pile 400V 39μF electrolytic capacitors damaged due to voltage fluctuations; adding overvoltage protection circuits prevented recurrence.
5. Special Type Application Cases

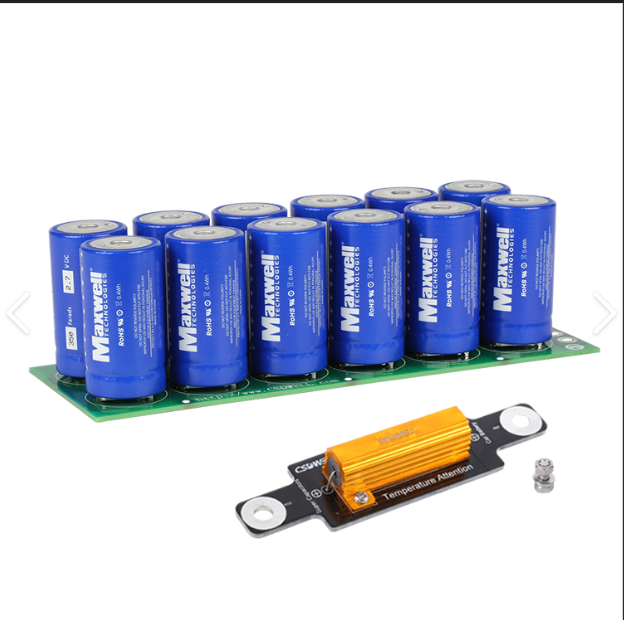

An automotive audio system uses 1 Farad electrolytic capacitors to provide large current instantaneous response, improving bass performance. Data center UPS power systems employ 16V 120000μF electrolytic capacitor banks to provide 15-minute backup power. Industrial laser equipment utilizes 22000μF 250V electrolytic capacitors for pulse laser energy storage.
6. **Brand Selection Experience Sharing
Industrial equipment using Lorida electrolytic capacitors achieved 5 years of continuous operation without failure. High-end audio systems using Lorida aluminum electrolytic capacitors demonstrated significant sound quality improvement. Cost-sensitive products selected domestic capacitors, ensuring reliability through derating design.
7. **Common Fault Handling Examples
A power board's 16V 4700μF electrolytic capacitor bulging was caused by excessive ripple current. Power amplifier's 100μF 100V electrolytic capacitor failure resulted from poor ventilation causing overheating. Switching power supply's 400V 4.7μF electrolytic capacitor breakdown was due to grid surge voltage.
8. Installation and Maintenance Practices

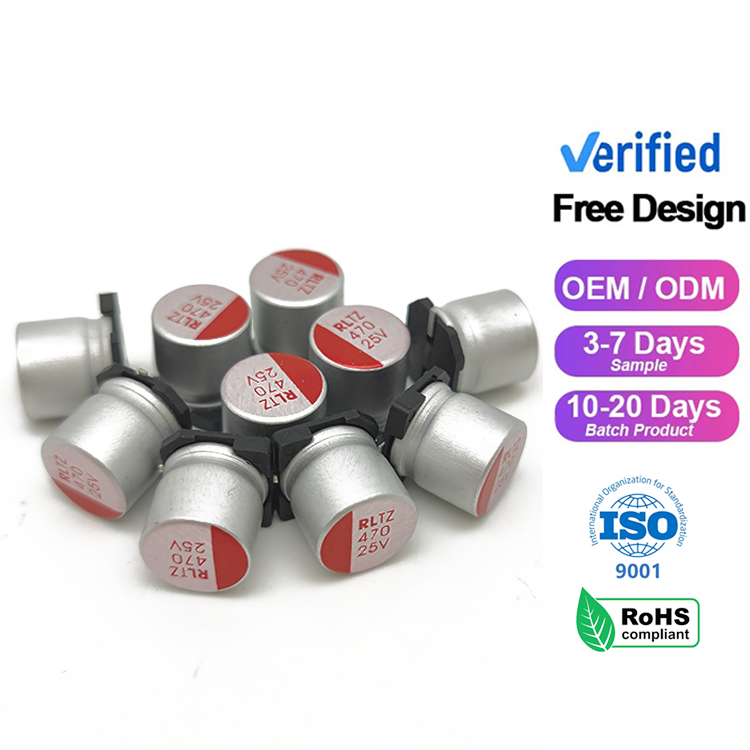

A product's 2200μF screw-type electrolytic capacitor suffered seal damage due to excessive installation torque. SMD CS100 electrolytic capacitors experienced reduced lifespan from excessive reflow soldering temperature. Regular testing of 35V 470μF electrolytic capacitor capacity enables preventive replacement to avoid field failures.
9. Selection Decision Examples
A project selected 25V 10000μF electrolytic capacitors after calculations confirmed ripple current requirements. High-temperature environments chosen 105°C rated electrolytic capacitors, providing 3 times longer lifespan than standard models. Cost-sensitive projects adopted standard specifications to avoid special models increasing procurement costs.
10. Special Considerations Cases
High-voltage equipment experienced arc discharge due to insufficient electrolytic capacitor spacing. Large capacity electrolytic capacitors' extended charging time caused slow system startup. Using standard electrolytic capacitors in high-temperature environments led to premature failure.
This guide provides complete solutions from selection to maintenance based on actual engineering cases. We recommend selecting appropriate electrolytic capacitor products according to specific application requirements and establishing regular maintenance systems to ensure equipment reliable operation.
