A wirewound resistor for pulse duty must be selected from the complete waveform, not from continuous wattage alone. The OEM specification needs peak voltage or current, resistance, pulse duration, pulse shape, repetition rate, ambient temperature, mounting, and the allowed resistance shift. These six checks turn a transient event into an auditable RFQ and first-article test while keeping every numerical limit tied to the proposed resistor series.

Key Takeaways
What procurement and engineering should align before sampling
Calculate energy from the real voltage or current waveform and resistance.
Separate a single pulse from repetitive duty and provide the cooling interval.
Check both pulse energy and peak voltage because either limit can control selection.
Apply ambient-temperature and mounting derating from the exact series documentation.
Approve the delivered lot with recorded waveforms and before/after resistance values.
Why Continuous Wattage Does Not Define Pulse Capability
Short pulses heat the resistance element before the whole package responds
For a rectangular voltage pulse, the ideal electrical energy is E = V²t/R; for a current pulse it is E = I²Rt. A real surge may not be rectangular, so the correct method is to integrate instantaneous power over time. Vishay's AC03-CS/AC05-CS application note uses an effective 35 µs interval for a nominal 1.2/50 µs surge example. Its calculation for 6 kV across 100 Ω produces 12.6 J. That calculation explains the event, but the permissible result still comes from the model-specific pulse curve.
Vishay distinguishes short pulses from longer overloads at a construction-dependent crossover point. Before that point, its method assumes the energy is concentrated in the resistance wire. After it, heat transfer into the core, coating, leads, and enclosure becomes significant. Therefore a single joule number cannot be transferred between different resistance values, packages, winding styles, or pulse durations.

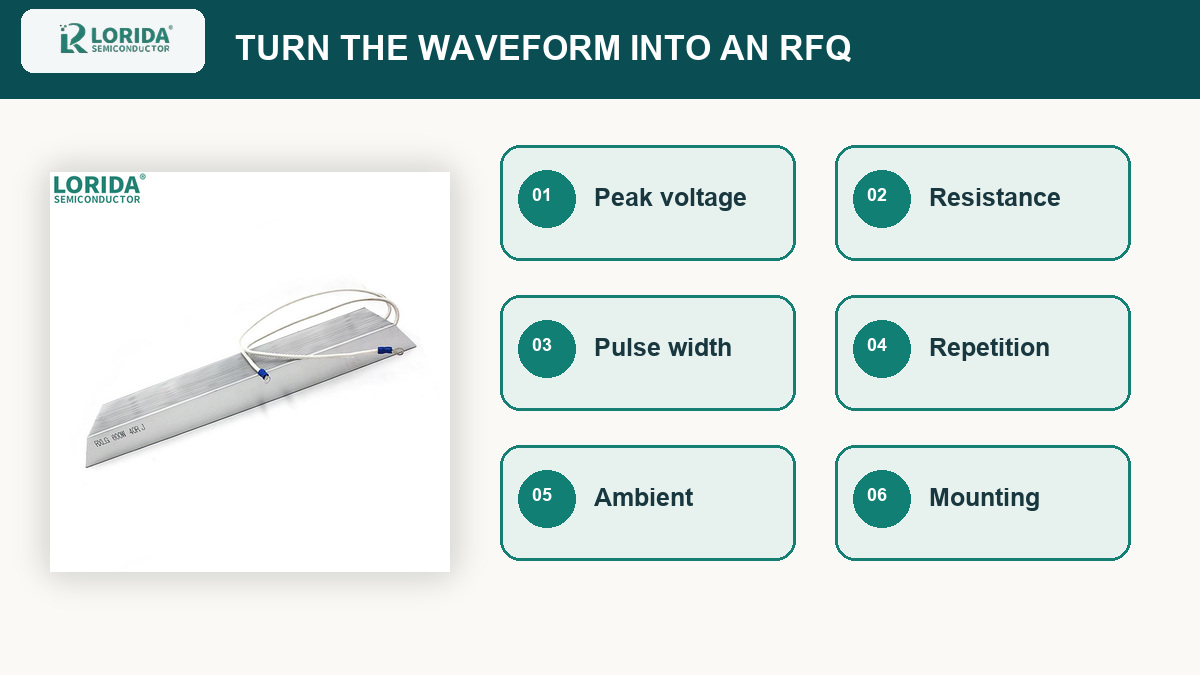

Six OEM Checks for a Pulse-Duty RFQ
Checks 1-2: waveform and resistance
Provide the waveform: State peak voltage or current, rise and fall behavior, pulse width, polarity, source impedance, and the normal and worst-case conditions. Attach a scope capture when available.
Lock the resistance range: Pulse capability can change with resistance because wire diameter, length, and mass change. Vishay explicitly notes that wirewound pulse capability is strongly resistance-dependent.

Checks 3-4: duration and repetition
Define pulse duration: Give the integration window and waveform shape. Bourns states that its HPP short-pulse rating assumes a duration below 10 ms, so a longer event needs another thermal treatment.
Define repetition: Give pulses per second, burst length, duty cycle, and the time available to return toward ambient. A single-pulse rating is not automatically a repetitive-pulse rating.
Checks 5-6: thermal and mechanical conditions
Record ambient and mounting: State airflow, enclosure temperature, heatsink or chassis interface, orientation, nearby heat sources, and terminal temperature. The same electrical pulse can create a different peak element temperature in a different assembly.
Set acceptance evidence: Name the allowed resistance drift, visual criteria, dielectric or insulation checks where applicable, sample quantity, number of pulses, and post-test recovery time.
Reference Data Must Stay Series-Specific
Published examples show why a part number and resistance value matter
Vishay's safety-fusible example lists AC05-CS surge capability of 4 kV for 10–20 Ω and 6 kV for 22–100 Ω. The same note lists AC03-CS capability of 2 kV for 10–91 Ω and 4 kV at 100 Ω. These differences occur inside related product families, so an OEM should never write “6 kV wirewound resistor” without the exact model, value, waveform, and test basis.
Bourns lists its WS surge-withstand wirewound family at 1–8 W, 15 Ω to 3.3 kΩ, 5% tolerance, and ±200 ppm/°C. Those catalog values describe a family; they do not replace the pulse-power or energy curve at the requested duration. Bourns' HPP methodology also assumes the resistance material starts at 25°C and reaches 450°C, with a stated 50% safety factor for manufacturing variation. Treat those assumptions as supplier-method information, not a universal LORIDA claim.
RFQ and First-Article Evidence Table
Use one data structure from quotation through approval
| Item | RFQ input | Approval record |
|---|---|---|
| Waveform | V/I versus time | Scope trace and calculation |
| Repetition | Rate, burst, duty cycle | Pulse counter and timing |
| Thermal | Ambient, airflow, mounting | Temperature log |
| Electrical | R, tolerance, peak voltage | Before/after resistance |
| Mechanical | Envelope, terminals, clearance | Drawing and photos |

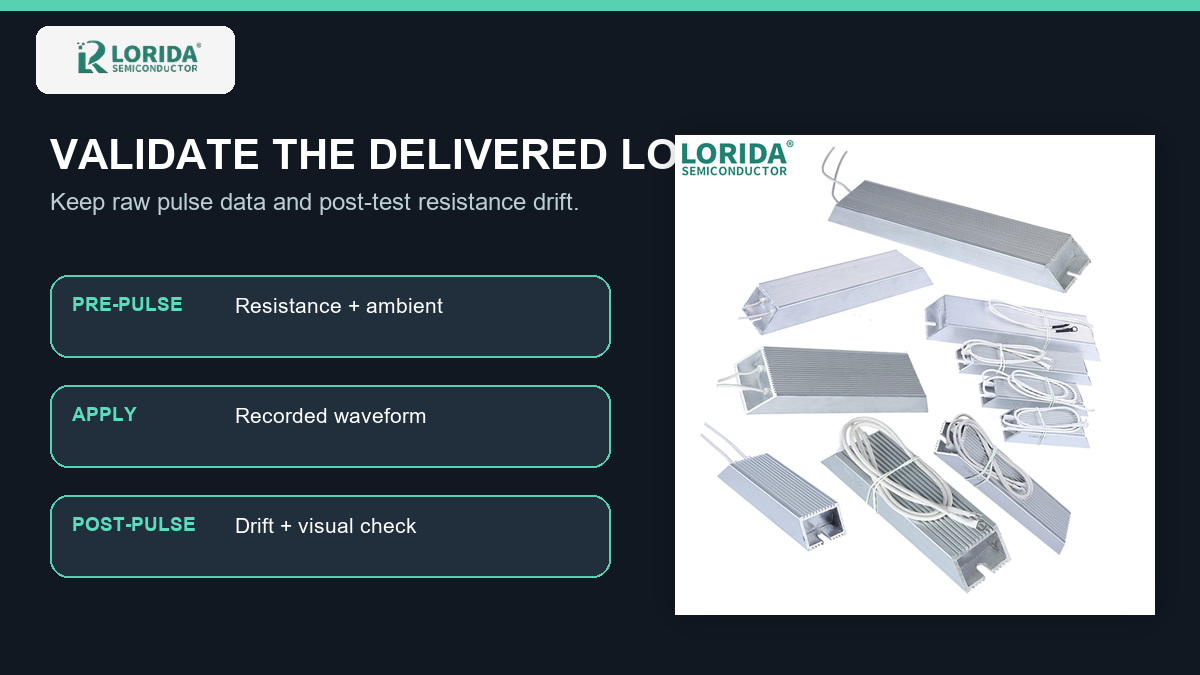

First-Article Validation Workflow
Confirm the lot under the intended assembly conditions
Start with the proposed braking resistor construction and drawing. Measure cold resistance and ambient temperature, install the sample with the specified orientation and clearances, and capture the applied waveform at the resistor terminals. Apply the approved number of pulses once, then allow the specified recovery period before recording resistance drift and visual condition. Do not keep pulsing a questionable sample simply to obtain a passing average.
For VFD applications, connect the pulse requirement to the drive's braking-chopper limits and the system duty described in the VFD braking resistor RFQ guide. Retain the resistor lot, instrument IDs, waveform files, temperature log, photos, calculation sheet, and disposition. Those records make later supplier changes and field-failure analysis auditable.
Frequently Asked Questions
How do I calculate wirewound resistor pulse energy?
Calculate energy by integrating instantaneous power over the pulse. For a rectangular voltage pulse, use E = V²t/R; for a rectangular current pulse, use E = I²Rt. For exponential, triangular, chopped, or measured waveforms, integrate V(t)I(t) over the defined interval or use a verified numerical calculation from the scope data. Include source impedance and tolerance so the worst-case resistance and peak are represented. Then compare both the calculated energy and peak voltage with the exact manufacturer's curve for the selected model and resistance value.
Can I use continuous wattage to approve a short pulse?
No, continuous wattage alone cannot approve a short pulse. Continuous power describes steady-state heat removal under defined ambient and mounting conditions, while a short pulse can heat the resistance wire much faster than the package dissipates heat. Manufacturer pulse curves account for wire mass, resistance value, coating, core, terminals, and duration. Provide the waveform, energy, peak voltage, repetition rate, and starting temperature. Use wattage as one input to steady-state and longer-duration checks, not as a substitute for transient qualification.
Why does repetition rate matter if each pulse is below the joule limit?
Repetition rate matters because the resistor may not cool back to its assumed starting temperature between pulses. Energy can accumulate through a burst or continuous duty cycle, raising element, case, terminal, and nearby-component temperatures. A single-pulse rating commonly assumes full recovery toward ambient. The RFQ should therefore state pulses per second, burst duration, off-time, maximum event count, airflow, enclosure temperature, and mounting. First-article testing should reproduce that sequence and record temperature until a stable or worst-case condition is demonstrated.
What evidence should a supplier provide for pulse approval?
The supplier should provide a model-specific pulse basis and traceable first-article results. Request the datasheet revision, pulse-power or energy curve, resistance value used for the assessment, waveform assumptions, ambient and mounting conditions, and any derating. The sample report should include lot identity, calibrated equipment, raw voltage/current traces, calculated energy, pulse count, temperature record, before/after resistance, recovery time, and visual inspection. A statement of “high pulse capability” without these inputs is not enough to support an OEM qualification decision.
Sources and Next Step
Verified technical references used here
Exact examples were checked against Vishay's wirewound pulse-handling guidance, AC03-CS/AC05-CS application note, pulse selector, and Bourns HPP and WS series documentation. All numbers are attributed examples and are not LORIDA-wide guarantees.
