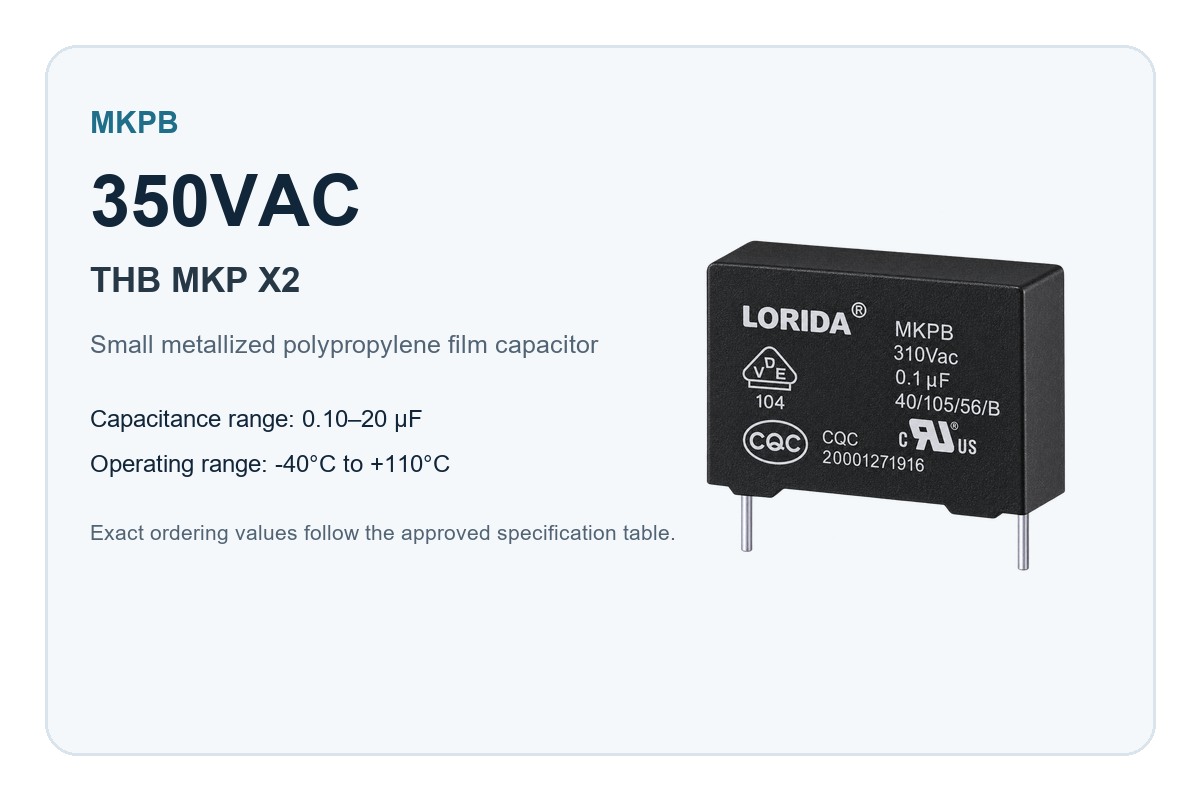

350VAC THB MKP X2 Metallized Polypropylene Safety Capacitor

HIGH-HUMIDITY X2 SUPPRESSION

350VAC THB MKP X2

A THB-oriented metallized polypropylene safety-capacitor family for across-the-line filtering in equipment exposed to demanding heat and humidity conditions.

Voltage350VAC

Capacitance family0.10–20 µF

DielectricMetallized PP

SeriesMKPB

OEM supplyDrawing reviewSample approvalBrand customization

INTRODUCTION

Product Parameter

01 · TECHNICAL REFERENCE

350VAC selection table

Values below define the product family. Exact electrical and mechanical limits follow the selected ordering code and approved drawing.

Parameter	Reference Value
Capacitance	0.10–20 µF
Rated voltage	350VAC
Operating temperature	-40°C to +110°C
Dimensions	Ordering-code specific; confirm W×H×T and approved drawing
Expected life / endurance	1,000 h THB test at 85°C / 85% RH with rated voltage
Application field	across-the-line EMI suppression and high-humidity mains filtering
Customization supported	Yes, subject to technical and commercial review
Customization scope	Capacitance, case, lead configuration, sleeve/printing and approved LORIDA branding

Product Information

02 · PRODUCT ENGINEERING GUIDE

Designing with 350VAC THB MKP X2

undefined

Core strengths

X2-oriented across-the-line application
THB-focused construction for demanding humidity exposure
Self-healing metallized polypropylene dielectric
Flame-retardant molded case and epoxy sealing

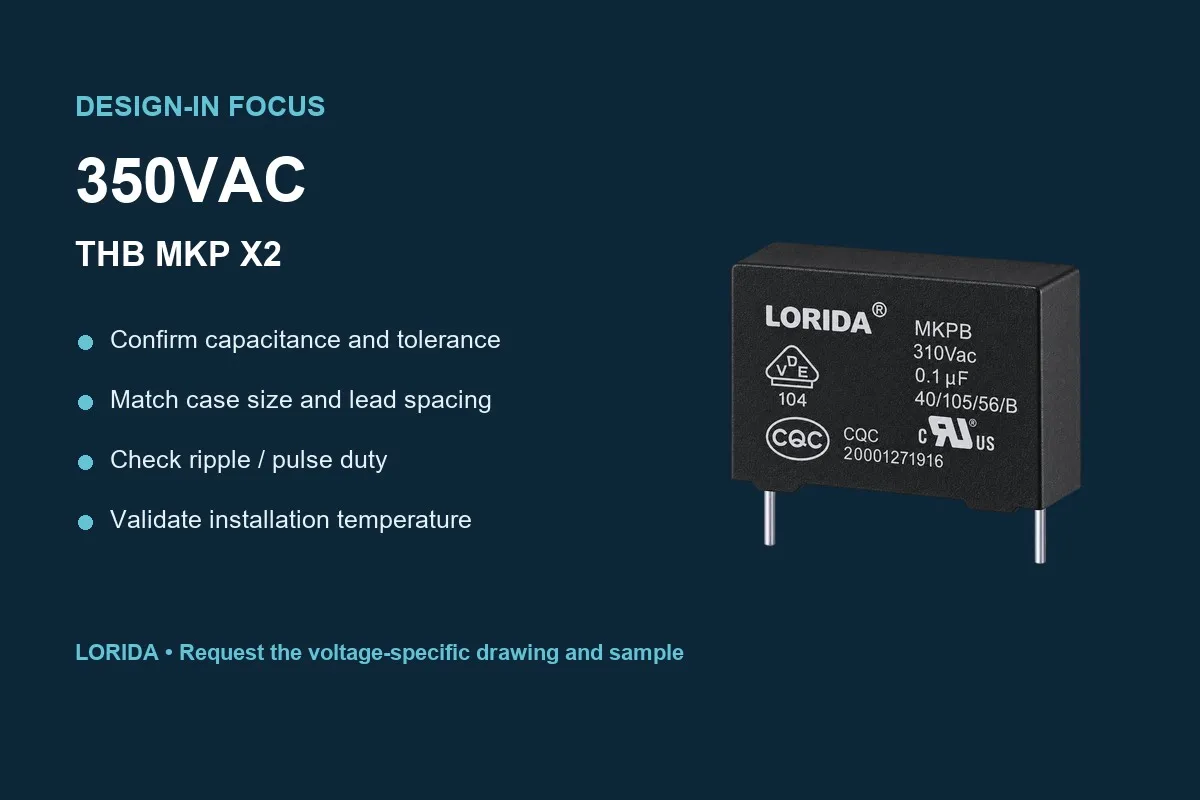

Selection workflow

Define voltage, capacitance and circuit duty.
Share waveform/current, frequency and ambient conditions.
Confirm case size, lead configuration and PCB limits.
Approve ordering code, drawing and sample before production.

03 · APPLICATION FIT

Where this voltage family fits

Application	Design focus
Mains-input EMI filters	across-the-line EMI suppression
Appliances and industrial controls	Compact OEM design-in
Power supplies operating in humid environments	Voltage-family selection
Across-the-line noise suppression networks	Drawing and sample approval

04 · BUYER QUESTIONS

Frequently asked questions

Is this page for line-to-earth use?

No. This family is positioned for X2 across-the-line suppression; use an appropriate Y-class family for line-to-earth duty.

What does THB selection require?

Provide rated voltage, capacitance, humidity profile, case limit and applicable approval requirements.

Are certificates implied by the product page?

No. Applicable certification documents must be confirmed for the selected ordering code and destination market.

Can the case and lead pitch change?

Yes. Dimensions and lead spacing depend on capacitance and the approved ordering code.

RFQ checklist

Please provide capacitance, voltage, current or pulse duty, frequency, ambient temperature, case limit, PCB pitch, approval market, annual quantity and branding requirement.

Engineering confirmation

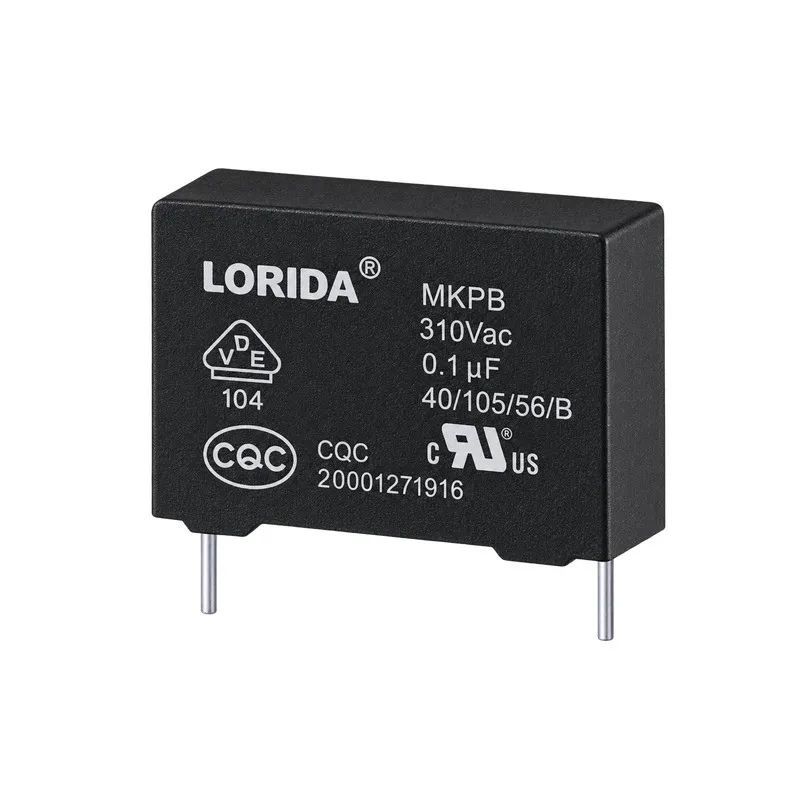

The product image is representative. Final marking, dimensions, electrical ratings and applicable documentation follow the approved part number, drawing and sample.

Request the 350VAC ordering table

Send your target capacitance and application conditions. LORIDA will review the suitable case, lead configuration and ordering code.

Discuss your application
