DC-Link Capacitors for Inverters, Drives and Energy Storage
LORIDA supports DC-link capacitor sourcing and model matching for inverters, motor drives, renewable-energy converters, UPS systems and other power-electronics applications. A suitable capacitor must be selected from the real electrical, thermal and mechanical conditions of the project—not from capacitance and voltage alone.
Send the operating profile and drawing for an exact-series review. Product ratings, certifications, availability and lead time remain subject to the current data sheet and written quotation.
Information Required for DC-Link Capacitor Selection
Provide the following inputs so quotations can be compared on the same engineering basis:
Nominal, maximum and transient DC-bus voltage
Target capacitance and permitted tolerance
Ripple-current spectrum, switching frequency and operating modes
Ambient, terminal and cooling-surface temperatures
Cooling method, duty cycle and expected service-life target
Case envelope, terminals, busbar interface, mounting and clearances
Applicable standards, destination market, sample timing and annual quantity
Electrical, Thermal and Mechanical Review
| Review area | Buyer input | Supplier response |
|---|---|---|
| Electrical duty | Bus voltage, transient ceiling, capacitance and ripple by frequency | Exact series, rating basis and loss or ESR data at relevant conditions |
| Thermal boundary | Ambient, terminal temperature, airflow or cold-plate conditions | Declared temperature limits and thermal or hotspot evaluation method |
| Mechanical interface | Envelope, terminal, busbar, mounting and clearance drawing | Controlled drawing and installation requirements |
| Qualification | Applicable standard, inspection plan and required evidence | Current documents, test conditions and first-article plan |

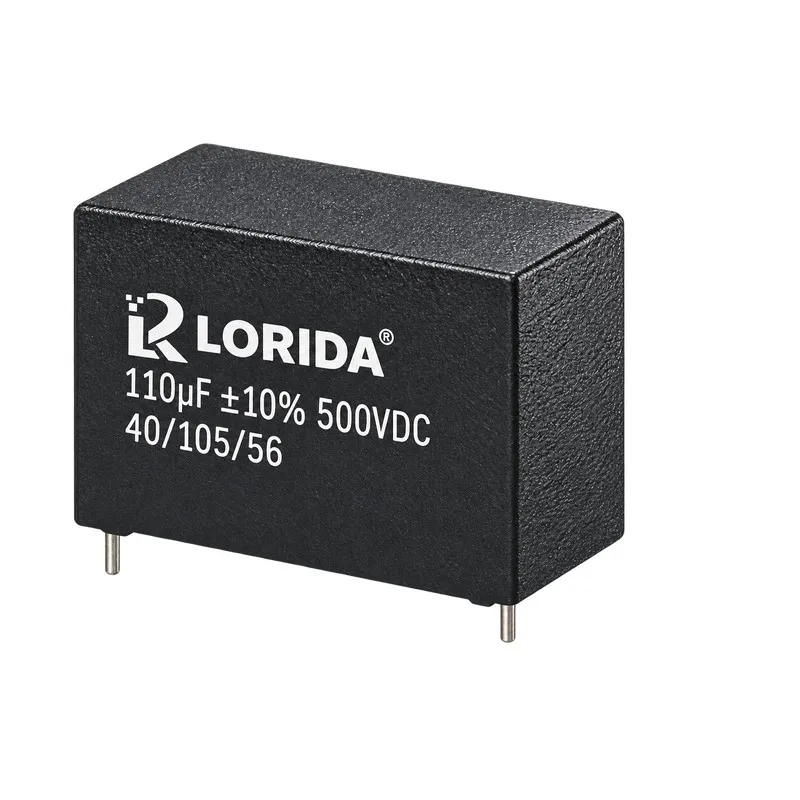

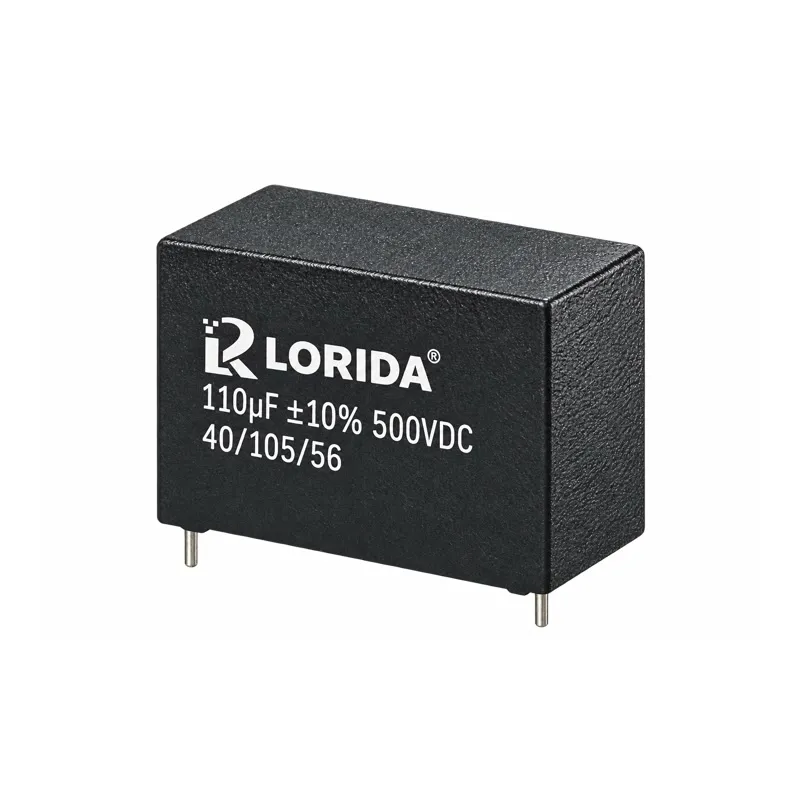

Product Family and Application Fit
DC-link designs may use different capacitor constructions depending on the operating profile, packaging and life target. Do not treat one family-level range as approval for every converter. The exact offered series, construction, dimensions and ratings should be confirmed against the current data sheet and the buyer’s application conditions.
Typical project discussions include industrial drives, solar and energy-storage inverters, UPS systems, charging equipment and other DC-bus power stages. Application names describe selection contexts only; final suitability requires engineering review and sample validation.
Documents and Sample Validation
Request the current exact-series data sheet and controlled dimension drawing.
Confirm the test frequency, temperature and cooling conditions attached to every rating.
Inspect the first article for dimensions, terminals, markings and workmanship.
Validate electrical and thermal performance in the real busbar, airflow or cooling arrangement.
Freeze the approved part number, drawing and agreed change-control items before production release.
Related DC-Link Capacitor Resources
Frequently Asked Questions
Can a DC-link capacitor be selected from capacitance and voltage alone?
No. Ripple-current spectrum, switching frequency, losses, temperatures, cooling, transient duty, terminal geometry, mounting and life target also affect selection.
What should be included in a replacement request?
Send the original nameplate or data sheet, maximum bus voltage, ripple-current information, temperature conditions, dimensions, terminal and mounting details, operating duty and required standards.
What documents should be reviewed before sampling?
Request the current exact-series data sheet, controlled drawing, construction statement, applicable compliance evidence, test conditions and a sample inspection plan. Family-level marketing information does not replace model-specific approval.
Request a DC-Link Capacitor Match
Send your operating profile, ripple-current spectrum, temperature conditions, mechanical drawing and quantity. LORIDA will review the information and discuss an exact-series quotation subject to data-sheet confirmation.
